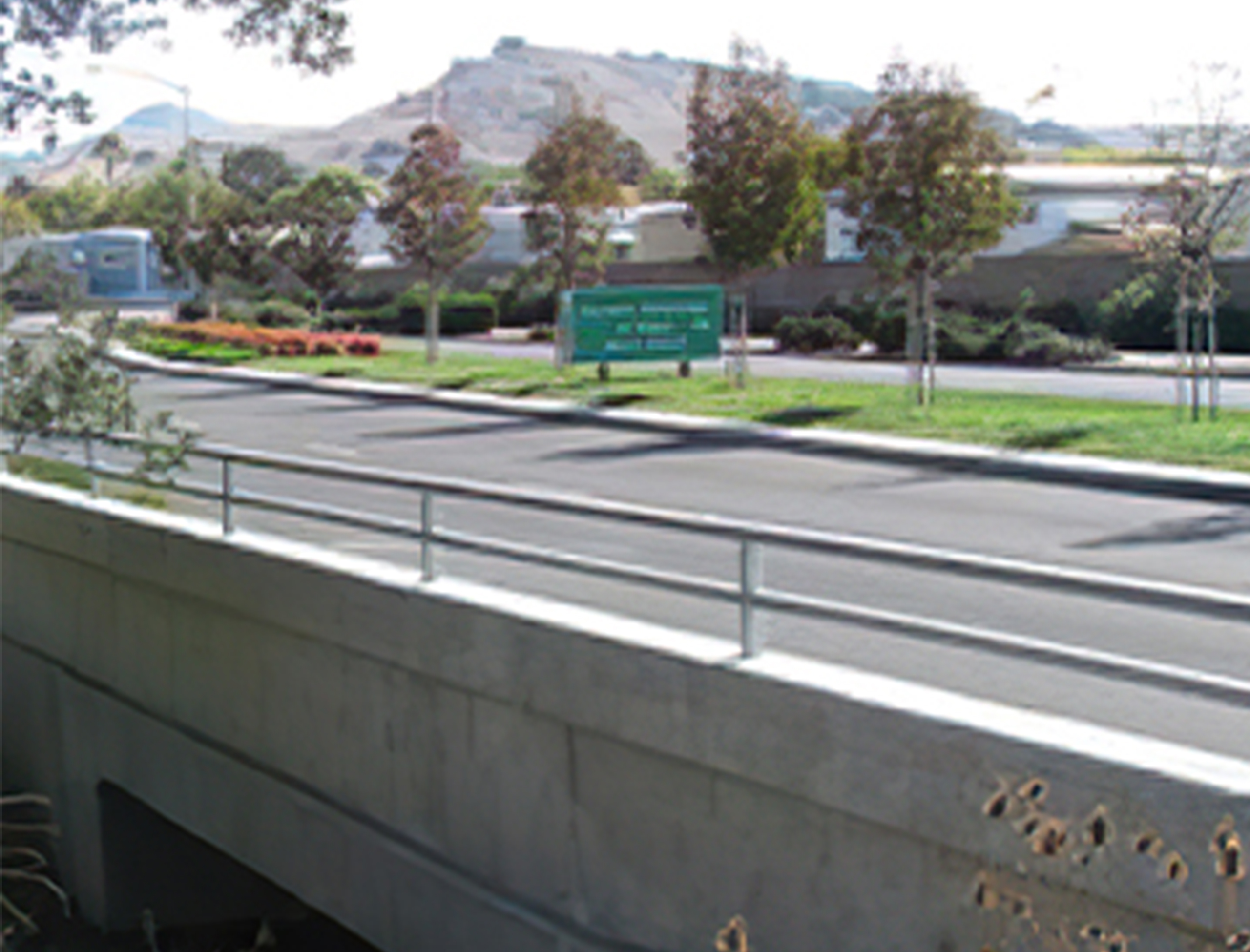

American Canyon Road Bridge

The American Canyon Road Bridge Widen project involves widening the current 53’-2” wide by 29’-2” long bridge over American Canyon Creek with an adjacent new bridge superstructure approximately 36’-7” wide by 29’-2” long.

Jump Ahead to Project Details

Project Details

The new bridge superstructure consists of a cast-in-place concrete slab supported by cantilevered diaphragm type abutments at each end of the bridge.  The abutments are supported by 14” square precast/prestressed concrete driven piles.  Cantilevered wingwalls and a retaining wall provide support for the edge of the roadway adjacent to the creek.

Since the existing bridge is supported by spread footings, the new bridge was designed to be isolated from it in order to allow for differential settlement of the two bridges.
